wireless 2 beams solar powered model: pbx 2b100sw

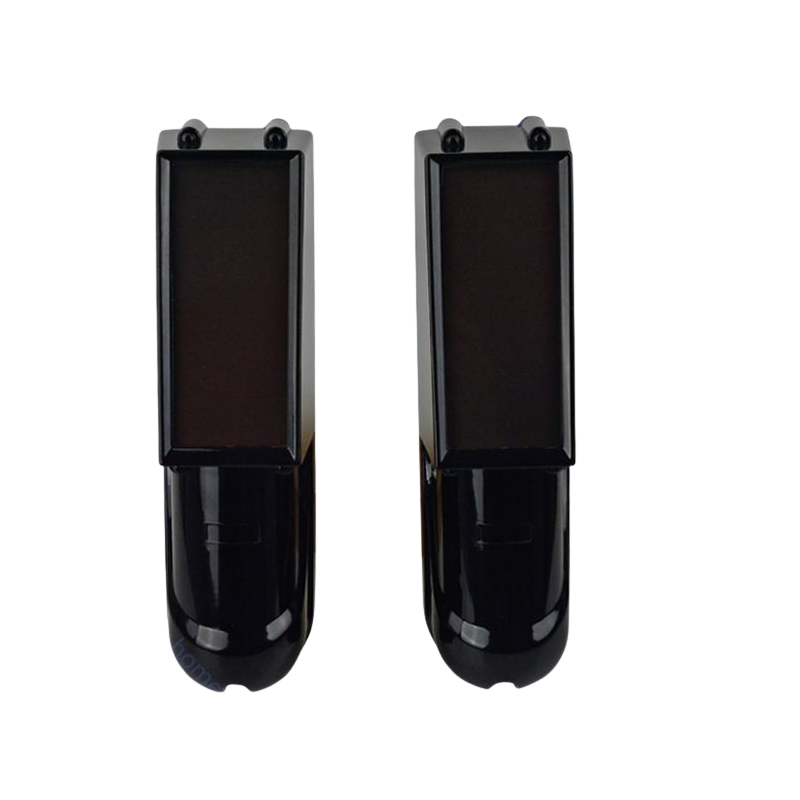

Wireless 2 Beams Solar Powered PBX-2B100SW

The PBX-2B100SW is a solar-powered, wireless outdoor security beam that creates a reliable 100-meter invisible barrier for perimeter protection. It transmits alerts via 433MHz up to 100 meters and is designed with efficient LiFePO4 batteries for continuous, maintenance-free operation.

Key Features:

  • Solar-powered outdoor beam
  • Wireless transmission up to 100m
  • LiFePO4 battery backup
  • Ultra-low ≤0.5mA current
  • Reliable 940nm infrared barrier
  • Durable, weather-resistant housing
Category:

Features:

  • Solar-Powered & Self-Sustaining: Integrated solar panel charges built-in LiFePO4 batteries for uninterrupted outdoor use.

  • Long-Range Protection: Creates a 100-meter infrared barrier with 940nm wavelength beams for wide perimeter coverage.

  • Wireless & Reliable: 433MHz wireless transmission up to 100 meters in open areas ensures stable connection to your alarm system.

  • Energy-Efficient Design: Ultra-low static current (≤0.5mA) maximizes solar charging efficiency and extends battery life.

  • Durable Outdoor Build: Compact housing designed to withstand outdoor elements.

Specification

Specification Details
Model PBX-2B100SW
Device Type Solar‑Powered Wireless 2‑Beam Detector
Usage Outdoors
Wireless Frequency 433MHz
Power Source Solar Panel
Backup Battery TX: LiFePO4 Li‑ion, 500mAh
RX: LiFePO4 Li‑ion, 1000mAh
Infrared Wavelength 940nm ± 20nm
Beam Range 100 meters
Transmission Distance ≥ 100 m (open area)
Static Working Current TX ≤ 0.5 mA, RX ≤ 0.5 mA
Dimensions (L x W x H) 340 x 84 x 45 mm
Packing 8 Pairs / Carton
