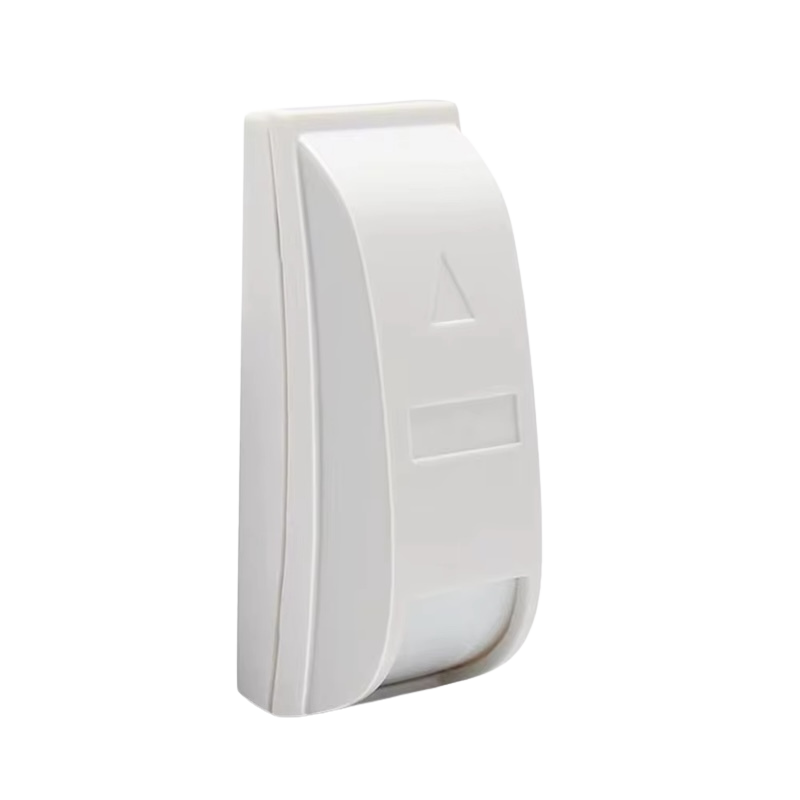

Wired Curtain PIR Detector 6m Range 15° Narrow Beam PA461

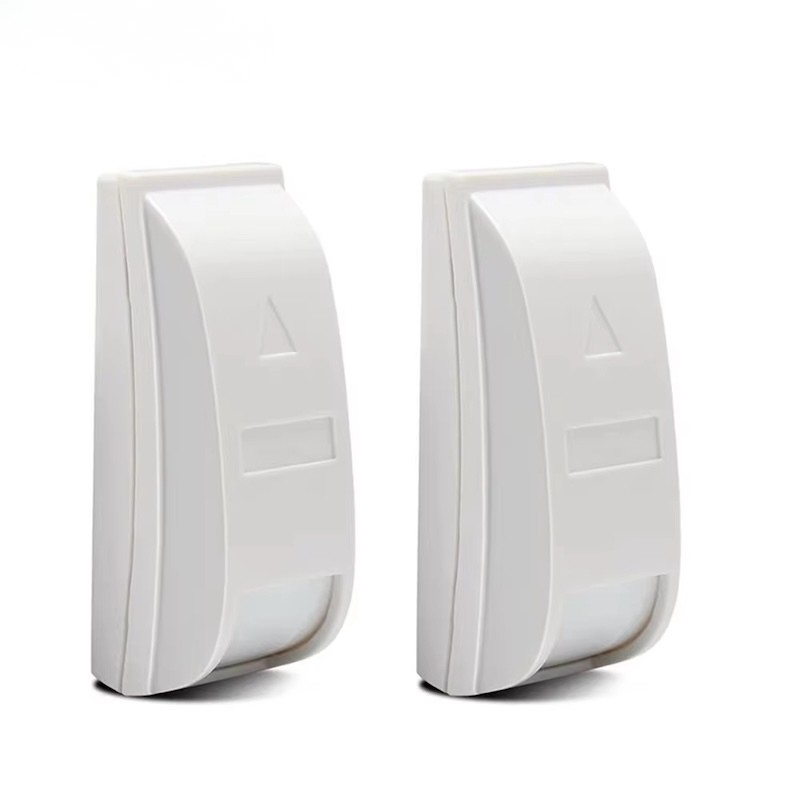

Wired Curtain PIR Detector 6m Range 15° Narrow Beam PA461 - Image 2

Wired Curtain PIR Detector 6m Range 15° Narrow Beam PA461

The PA461 is a wired curtain-style PIR (Passive Infrared) motion detector designed to monitor narrow entry points like windows and corridors with a focused 15-degree beam.

Key Features:

  • 6m Range, 15° Curtain Pattern
  • Wide 10-16V DC Input
  • Low Power (<12.5mA)
  • Brackets Included
Category:

Features:

  • Focused Detection Pattern: Features a 15-degree detection angle to create a precise “curtain” of protection for specific openings.

  • Wide Voltage Input: Operates on a flexible 10-16V DC power supply with low current consumption (< 12.5 mA).

  • Integrated Mounting: Comes complete with installation brackets for straightforward wall mounting.

  • Flexible Output: Provides a standard N.C. (Normally Closed) alarm relay output for seamless integration with control panels.

  • Adjustable Indication: The status LED can be switched ON or OFF as needed for discreet operation.

  • Reliable Performance: Offers a consistent 3-second alarm period upon detection.

Specification

Category Specification
Model PA461
Product Name Wired Curtain PIR Detector
Power Supply 10-16V DC
Working Current < 12.5 mA (at 12V DC)
Detection Range 6 meters
Detection Angle 15 degrees (Curtain pattern)
Alarm Output N.C. (Normally Closed) Relay
Alarm Period 3 seconds
Indicators LED ON/OFF (Configurable)
Mounting Wall Mounted (Brackets Included)
Dimensions (L x W x H) 70mm x 28mm x 25mm
