Tuya Smart Handle Lock with Password & Fingerprint Access T3

The T3 Smart Handle Door Lock integrates with the Tuya smart home platform, offering keyless entry through password or fingerprint in a durable handle design. It provides reliable access control for standard doors with flexible installation options and robust environmental performance.

Key Features:

  • Tuya Smart Home Integration (TT LOCK)
  • Handle-Style Design with Aluminum Alloy Build
  • Password (250) & Fingerprint (100) Access
  • Flexible Mortise Installation Options
  • Efficient AAA Battery Power with Emergency Port

Features:

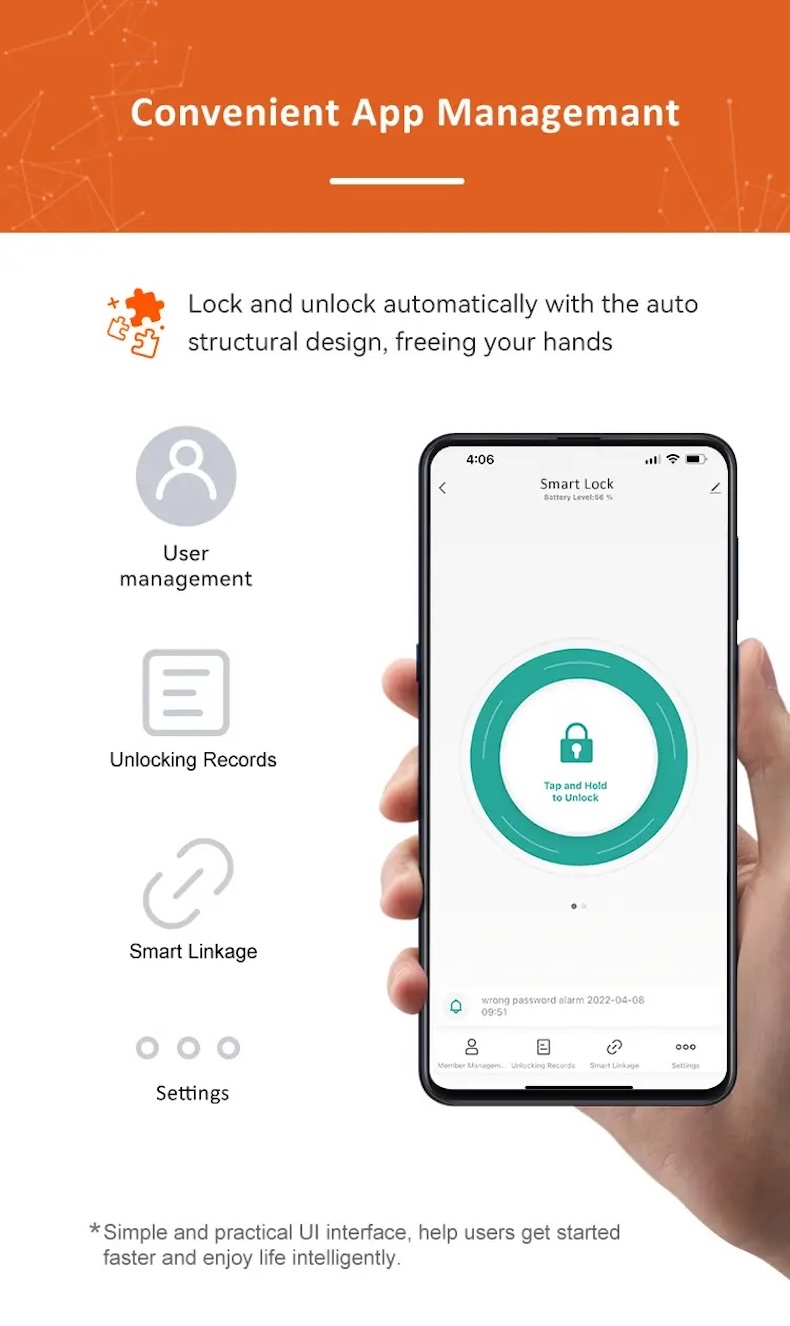

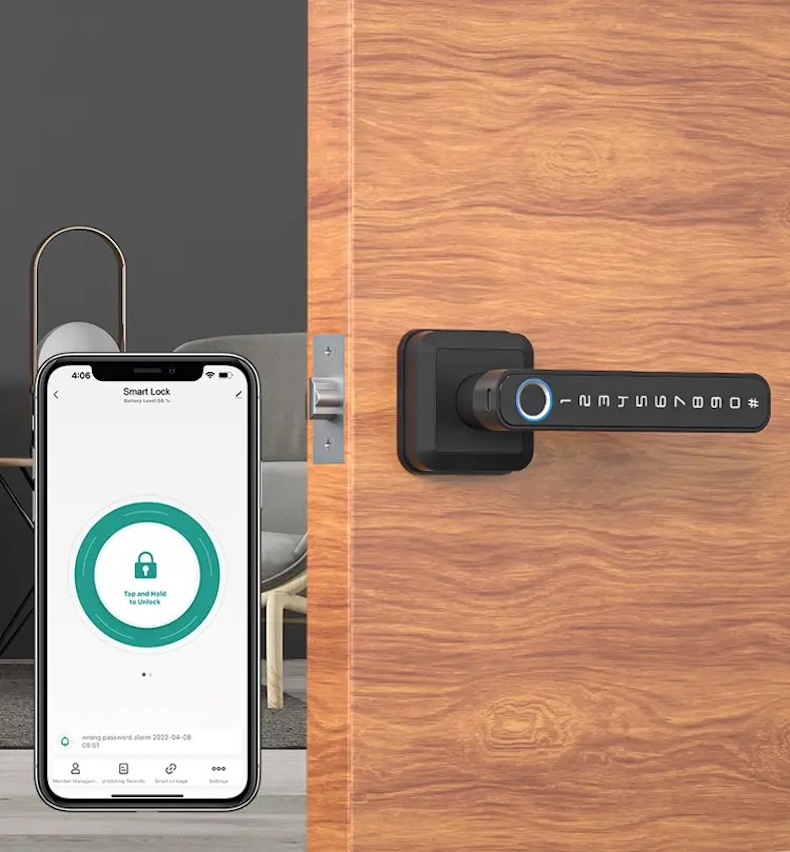

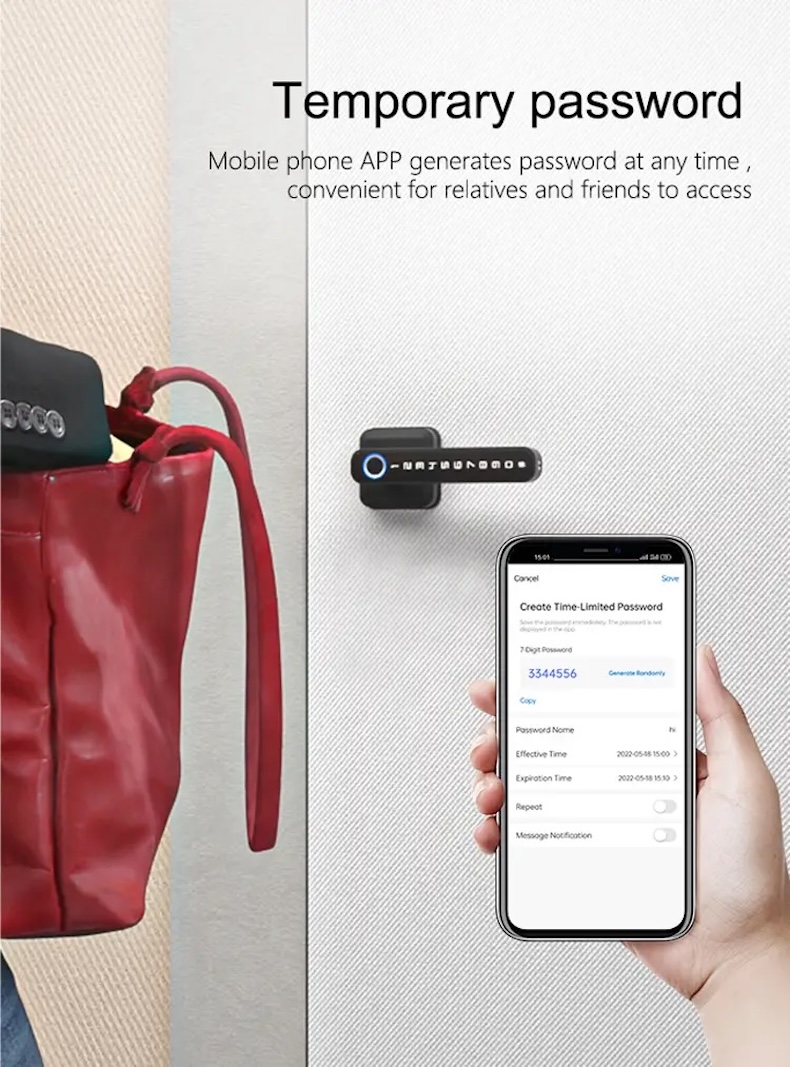

  • Tuya Smart Home Integration: Connects to the Tuya ecosystem (via TT LOCK) for convenient remote access, user management, and smart home automation through a unified app.

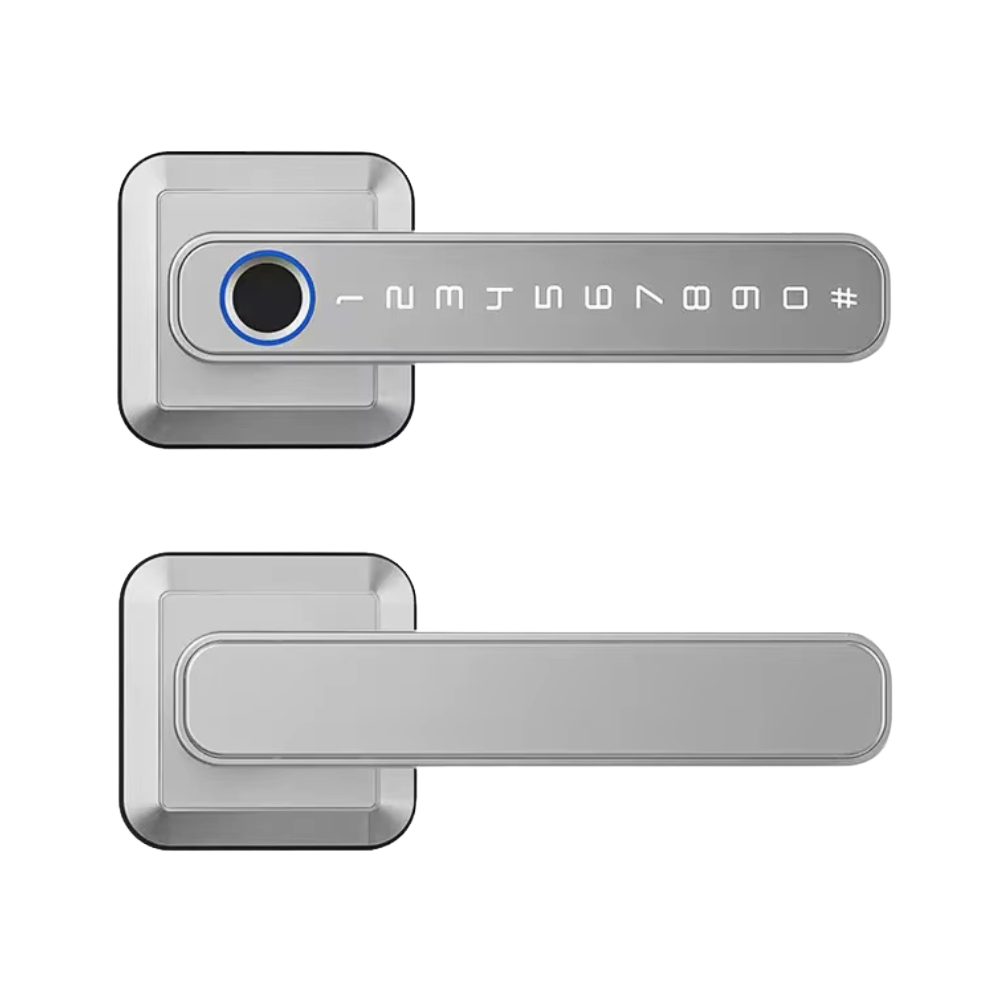

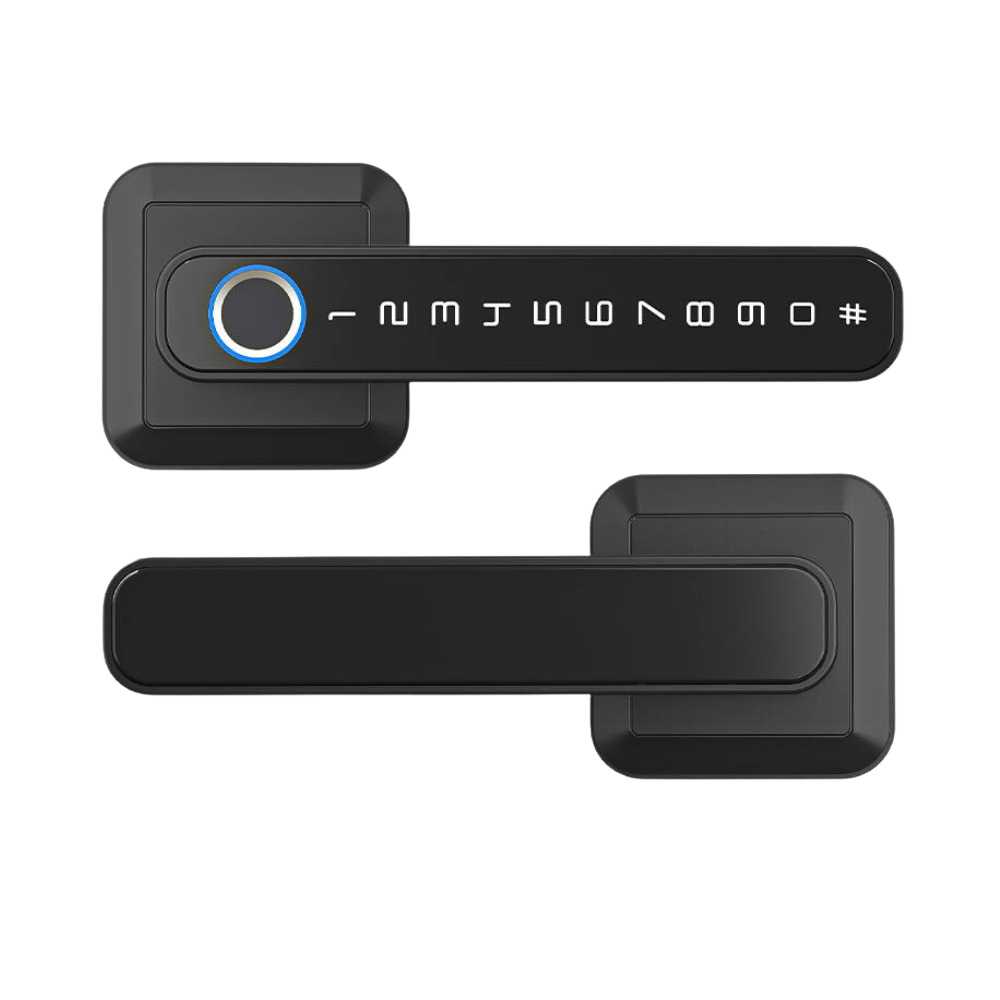

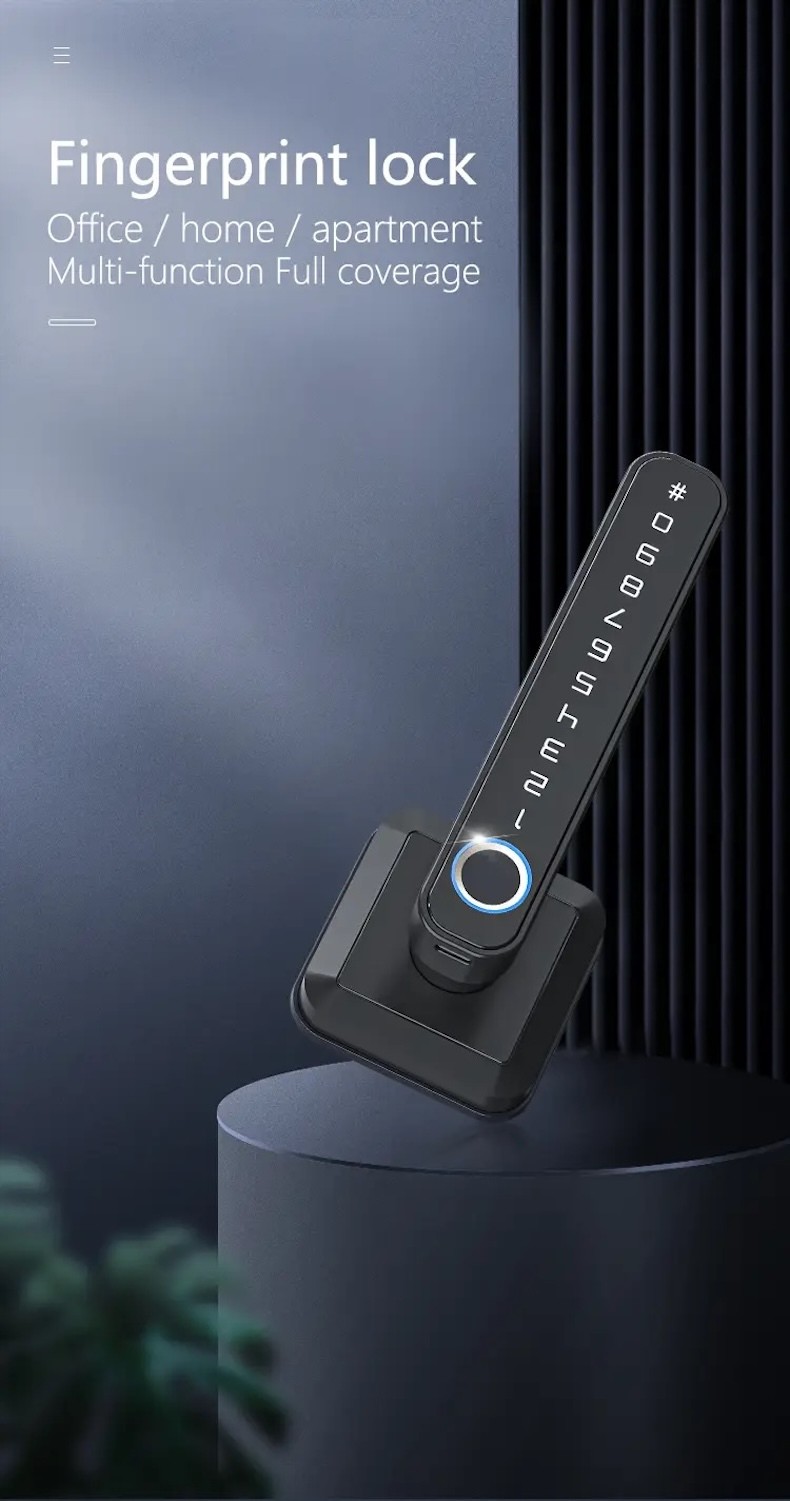

  • Handle-Style Design & Build: Features a practical handle form factor with an aluminum alloy cover and acrylic panel, available in Black and Silver finishes.

  • Dual Access Methods: Supports keyless entry via numeric password (250-user capacity) and fingerprint recognition (100-user capacity).

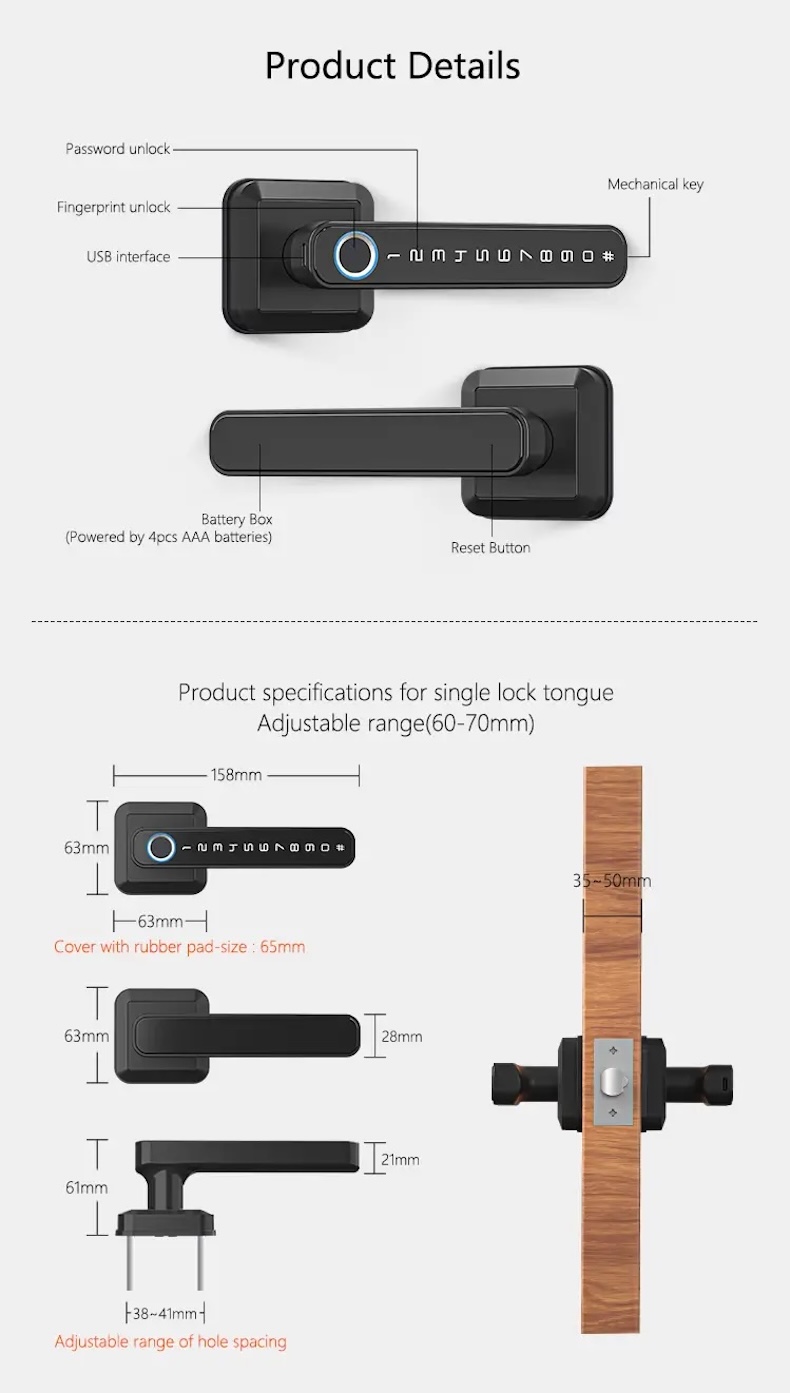

  • Flexible Mortise Options: Compatible with a 50-70mm single latch mortise as standard, with optional 72-hole and 85-hole mortise lock bodies available for customization.

  • Robust Power System: Powered by 4 AAA batteries with efficient power management (≤200mA work current) and includes a 5V DC emergency power port.

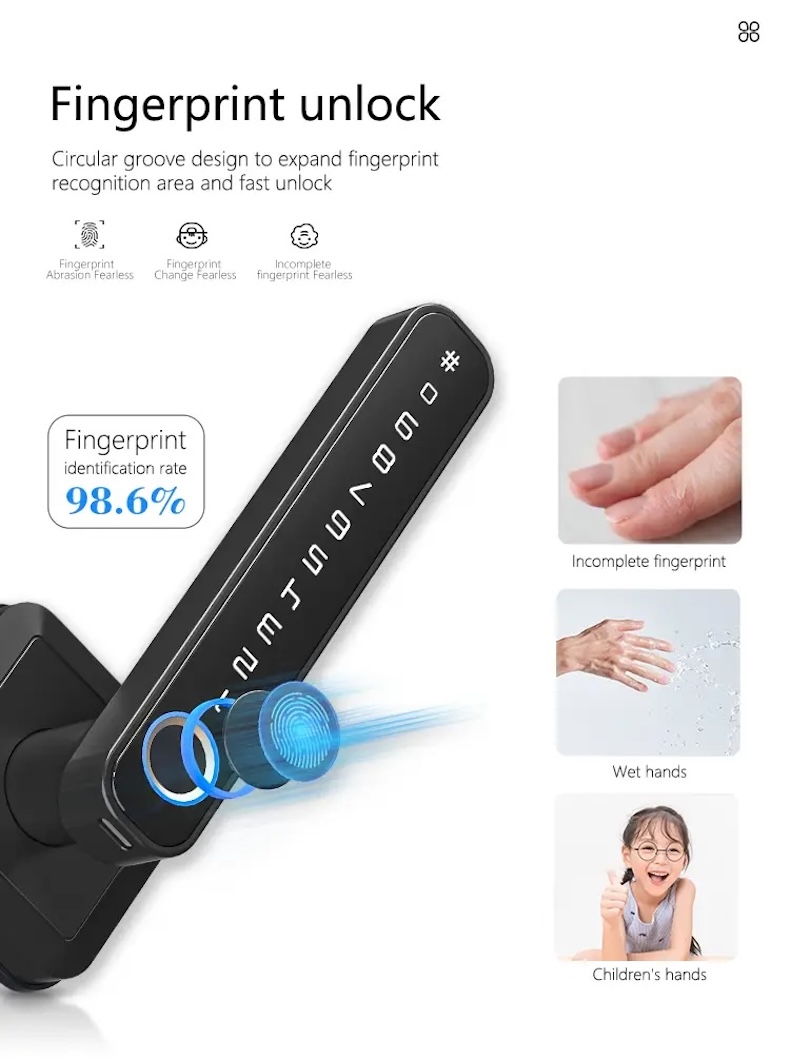

  • Reliable Biometric Security: Equipped with a fingerprint scanner offering a ≤1 second verification time, ≤0.1% false rejection rate, and an extremely low ≤0.0001% false recognition rate.

Specification

Category Specification
Model T3
Product Name Smart Handle Door Lock
Smart Platform Powered by Tuya (TT LOCK)
Material Aluminum Alloy Cover, Acrylic Panel
Standard Mortise 50-70mm Single Latch
Mortise Option 72 Hole Mortise, 85 Hole Mortise
Door Thickness 35–50 mm
Color Black / Silver
Language System Chinese / English
Power Supply 6V (4 x AAA Batteries)
Work Current ≤ 200mA
Static Current ≤ 50µA
Emergency Power 5V DC
Administrator Users 9
Total User Capacity Password: 250, Fingerprint: 100
Fingerprint Contrast Time ≤ 1 Second
False Rejection Rate ≤ 0.1%
False Recognition Rate ≤ 0.0001%
Operating Temperature -20°C to +70°C
Operating Humidity 20% to 90% RH (non-condensing)
