| Model |
QSMAX |
— |

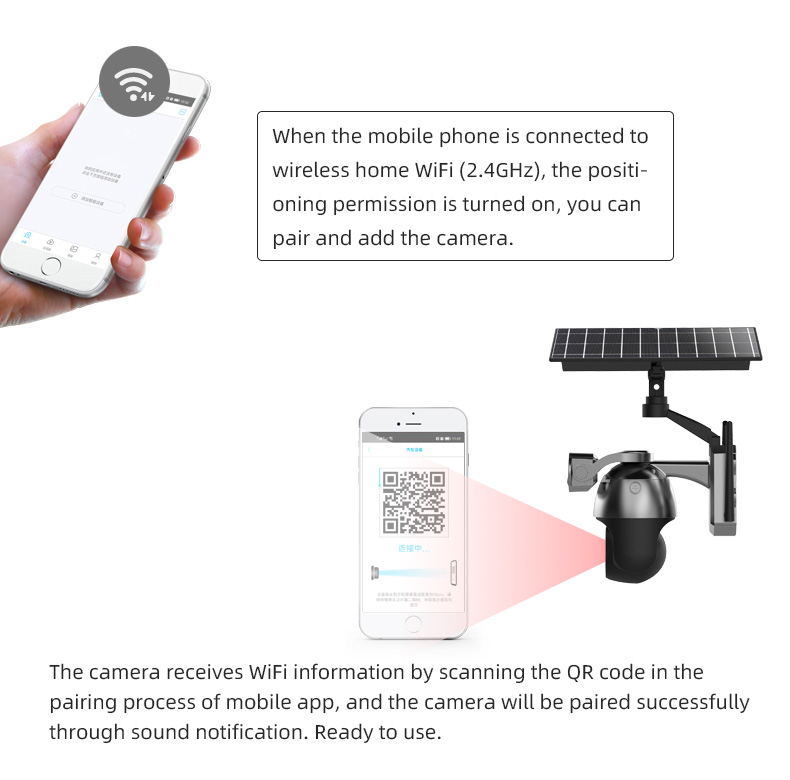

| Wireless (WiFi) |
Frequency |
2.4 GHz |
|
Standards |
IEEE 802.11b/g/n Draft |
| 4G Network |

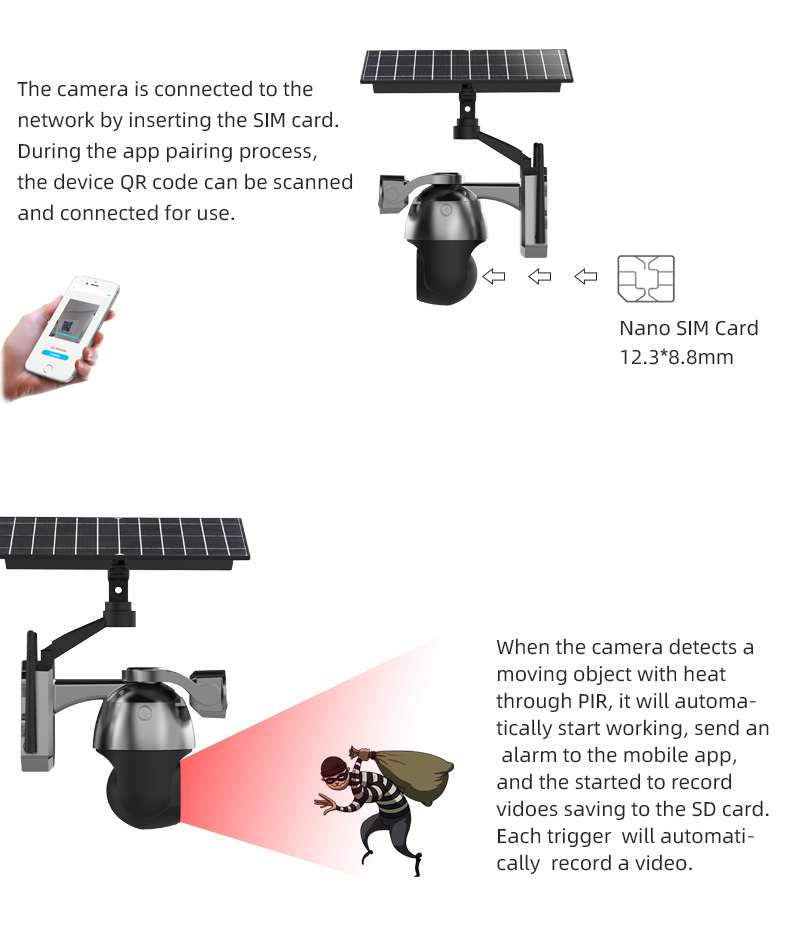

SIM Card |
Nano SIM |
|
Supported Regions & Bands |
• Southeast Asia: B1/B3/B5/B8/B34/B38/B39/B40/B41
• Australia: B1/B2/B3/B4/B5/B7/B8/B28/B40/B66
• Japan: B1/B3/B8/B18/B19/B26
• America: B2/B4/B5/B12/B13/B25/B26
• Europe: B1/B3/B5/B7/B8/B20 |
| Video |
Master Sensor |
3MP + 3MP (Ingenic T40N + 2063 + 2063) |
|
Resolution |
Main stream: 2304×2592@15fps
Sub stream: 640×720@15fps |
|
Compression Format |
H.265 |
|
Video File Format |
MP4 |
|
Lens |
2.8mm + 6mm F2.0, 180° + 60° angle, 4× digital zoom |
|
Night Vision |
4+6 array LEDs, up to 30m, full-color day/night |
| Audio |
Compression |
G.726 / AAC, 8Kbps, 16bit |
|
Input/Output |

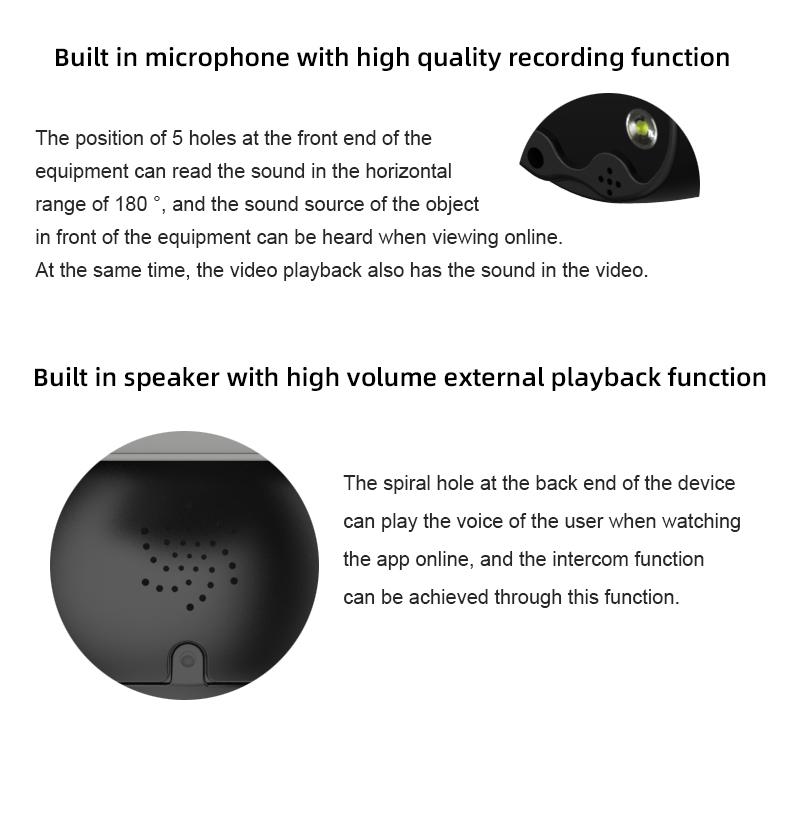

Built-in MIC & speakers, two-way audio |
| Alarm |
PIR Motion Detection |
Up to 12m range |
|
Alarm Linkage |
Records to microSD, pushes notification to mobile |
| Storage |
Memory Card |
Supports up to 128GB microSD, cloud storage |
|
Recording |
PIR alarm recording |
|
Playback |
Remote play & download via App |
| Power Supply |
Solar Panel |
12W monocrystalline silicon |
|
Battery |
3×18650 batteries, max 9600mAh |
|
Operating Mode |
Low power mode |
|
Wake-up Method |
PIR alarm or remote manual wake-up |
|
Hibernation |
After alarm ends or remote disconnect |
| PTZ |
Power Consumption |
Standby: 0.03W, Day: 1.3W, Night: 3W |
|

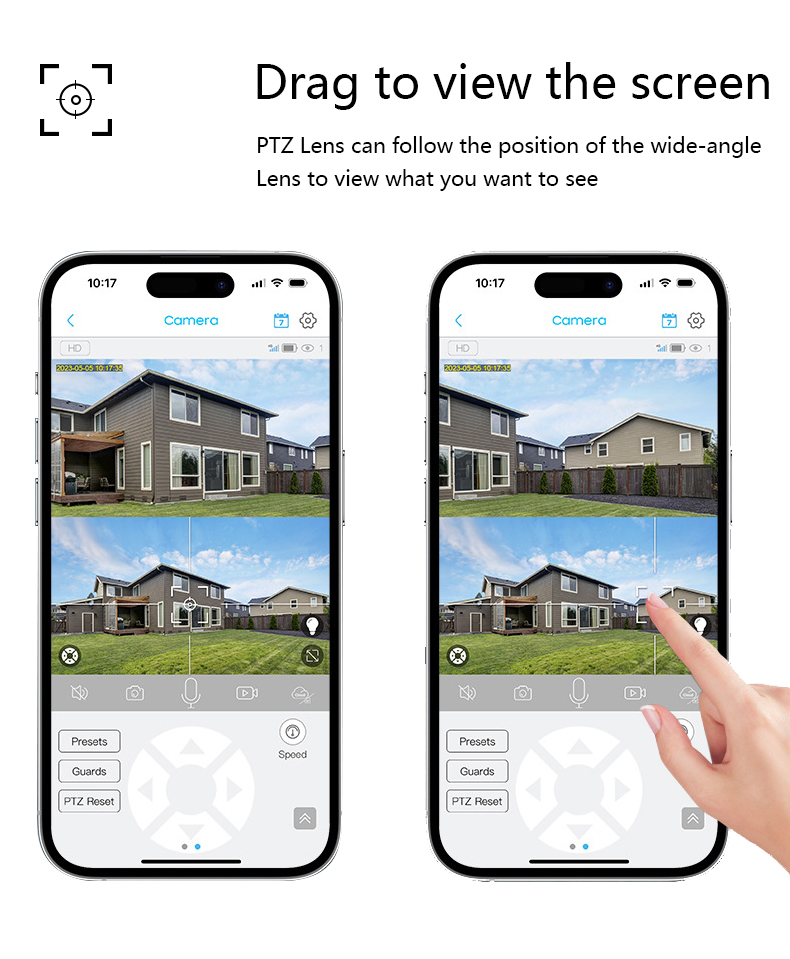

Rotation Angle (PTZ) |
Pan: 0°–355°, Tilt: 0°–120° |
|
Rotation Angle (Bullet) |
Pan: 0°–110°, Tilt: 0°–90° |
|
Speed (PTZ) |
Horizontal: 10°–30°/s, Vertical: 8°–25°/s |
|
Speed (Bullet) |
Manual adjustment |
| Other |
Optical Zoom |
10× |
|
Power Input |
DC 5V 2A |
|
Environment |
–20°C to +60°C, 10–80% humidity, non-condensing |
|

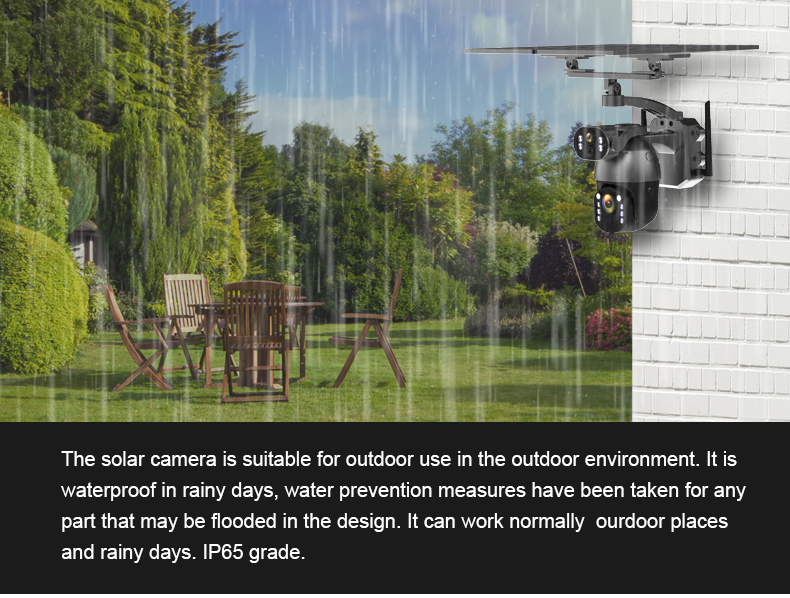

Housing |
ABS fireproof plastic, vandal-proof, IP65 waterproof |
|
Cable |
Type-C interface, 3m extension cable |
