Smart Wired Video Intercom System 1080p Doorbell with Touch Monitor & Tuya App Control

This wired smart video intercom system combines a metal outdoor doorbell with 10.1″ indoor touch monitor, offering 1080p video, two‑way talk, and IC card access control via the Tuya app for remote access and management.

Key Features:

Wired video intercom with 1080p camera
10.1 inch touch monitor
Tuya app control, 20‑user access, IC card unlock
Supports up to 2 doorbells & 6 indoor monitors
Motion alerts, TF/cloud storage, IR night vision
12V/2A shared power
Weatherproof metal doorbell

Category: Smart Intercom System

Features:

High‑Definition Video & Intercom: Features a 2MP, 140° wide‑angle outdoor camera with IR‑CUT night vision and 10.1″ indoor touch monitor for clear, hands‑free communication.

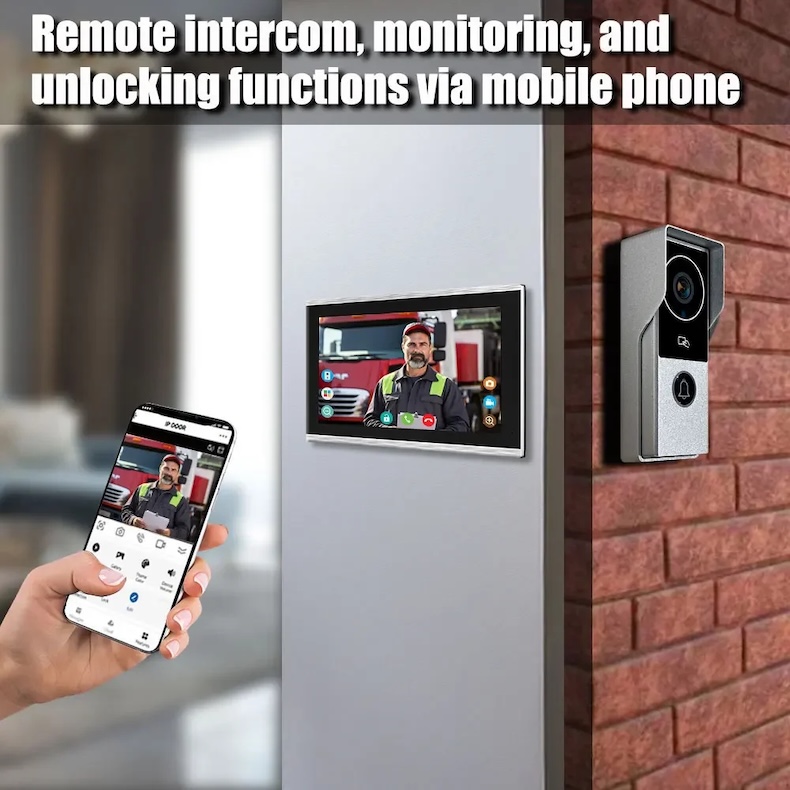

Smart Access & Remote Control: Supports 13.56MHz IC card unlocking and integrates with the Tuya app for remote video calls, unlocking, motion‑triggered alerts, and cloud storage for up to 20 users.

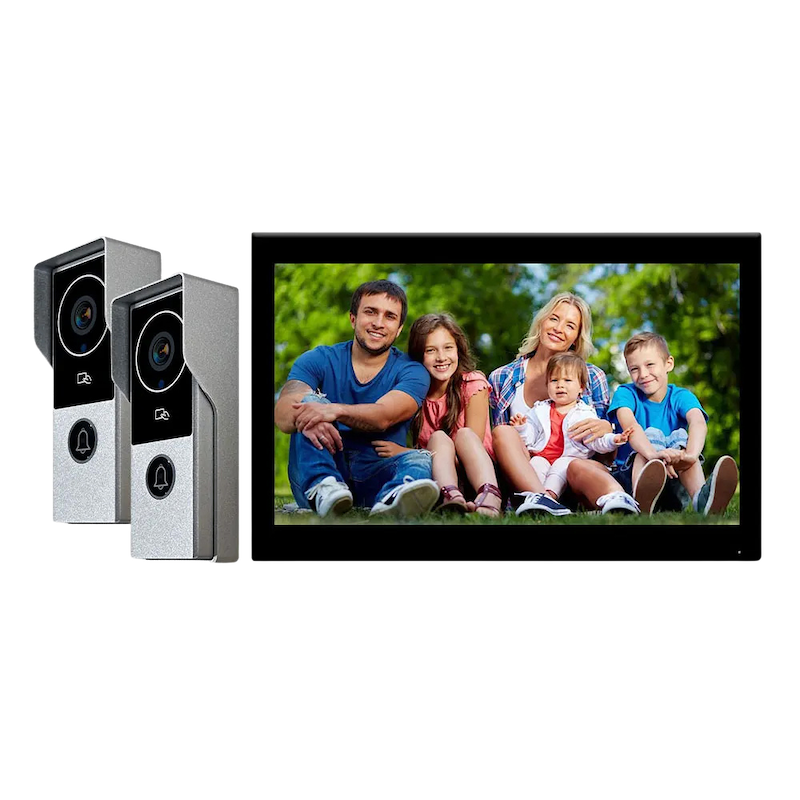

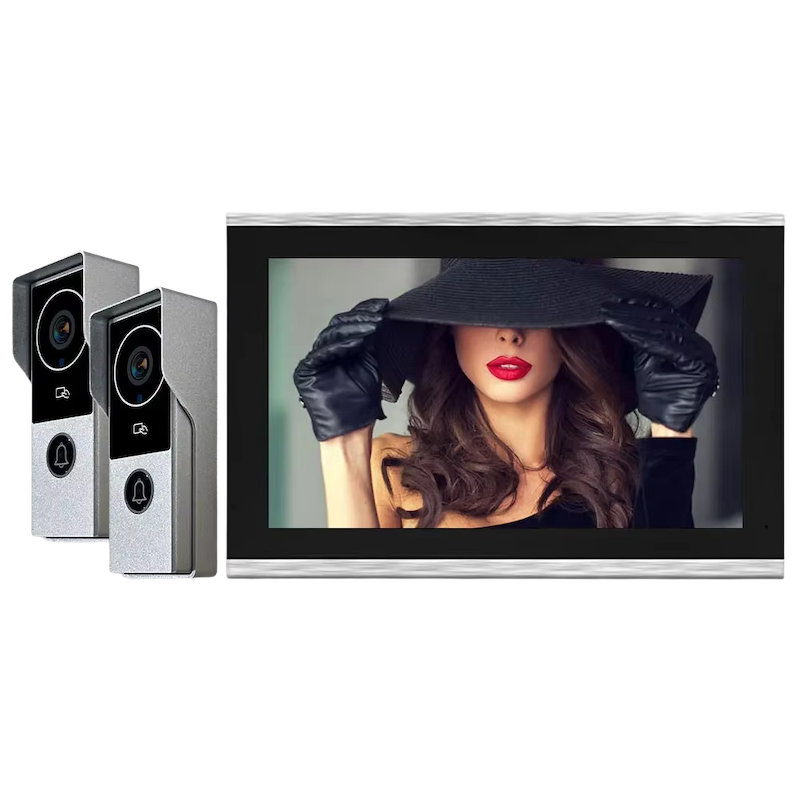

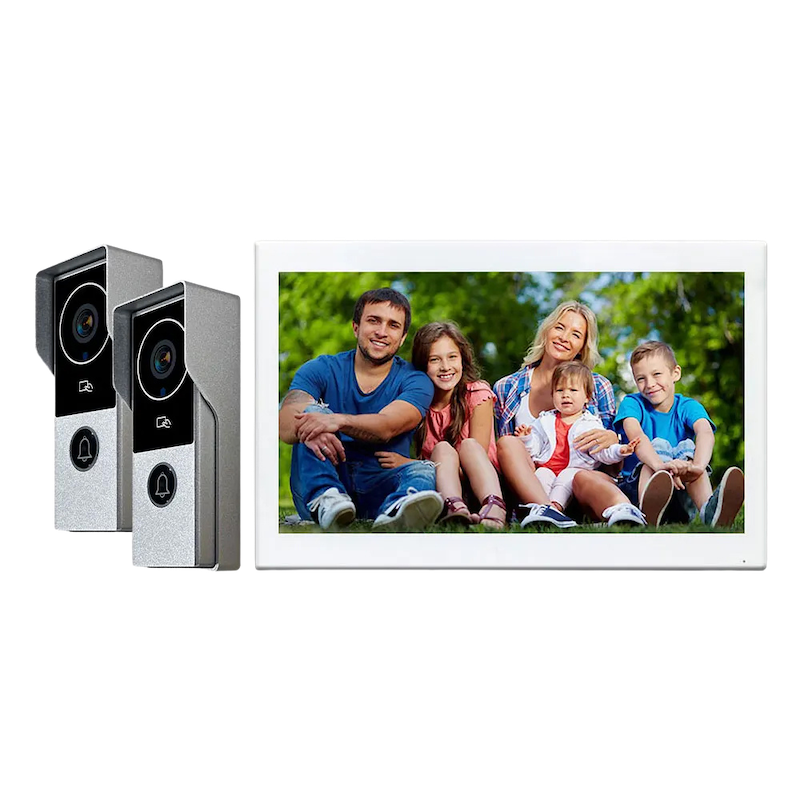

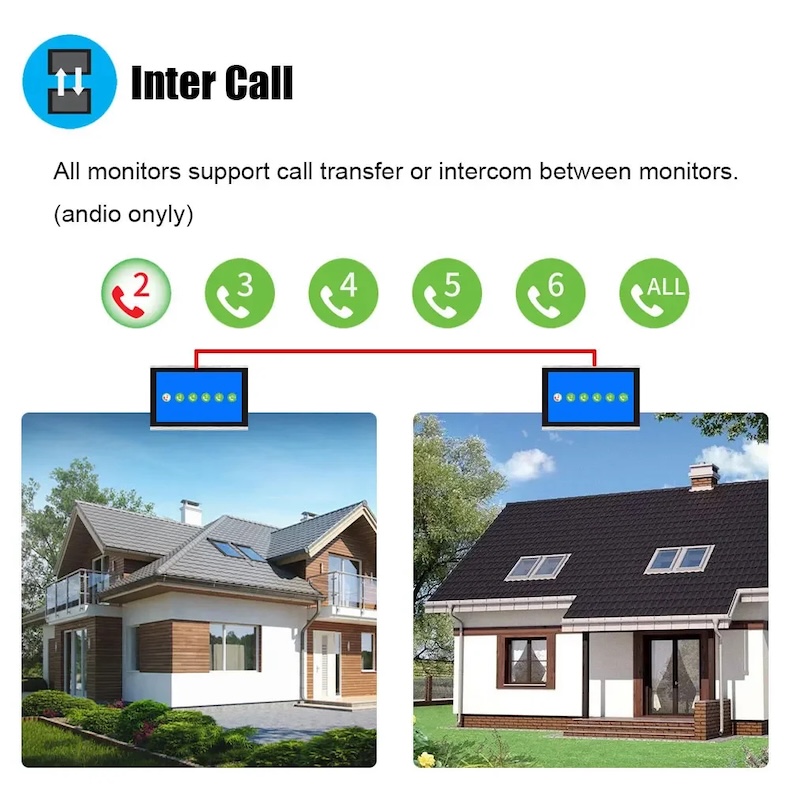

Expandable Wired System: The master monitor can connect to up to 2 doorbells, 2 CCTV cameras, and 6 additional indoor monitors for a scalable home security network.
Local & Cloud Storage: Saves photos, videos, and messages locally via TF card and offers optional cloud storage through the Tuya app.
Shared Power & Durable Build: Both indoor and outdoor units are powered by a single 12V/2A adapter, with a weatherproof metal doorbell housing for reliable outdoor use.

Specification

Specification	Details
Model
Product Name	Smart Video Intercom System (Wired)
System Composition	1 Outdoor Doorbell + 1 Indoor Monitor

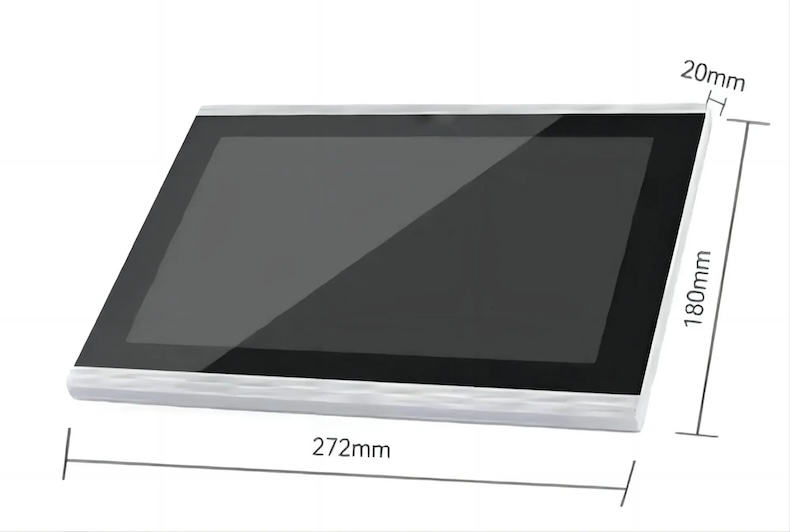

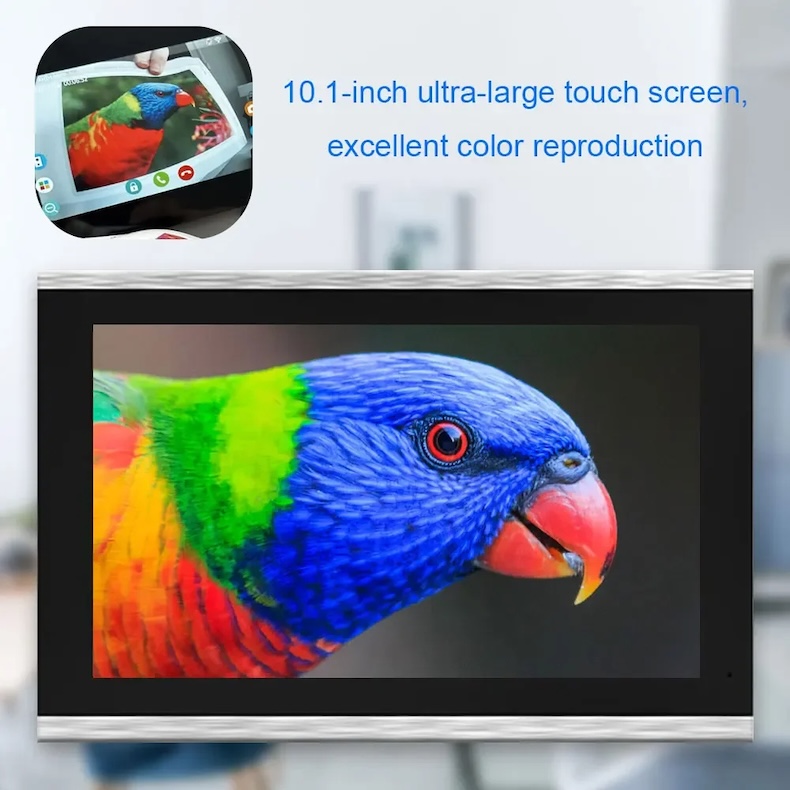

Indoor Monitor	7″ or 10.1″ Capacitive Touch Screen (1024×600)
Outdoor Camera	1080p, 2 Megapixel, 140° Viewing Angle, 1/3″ CMOS Sensor
Night Vision	IR‑CUT, Black & White

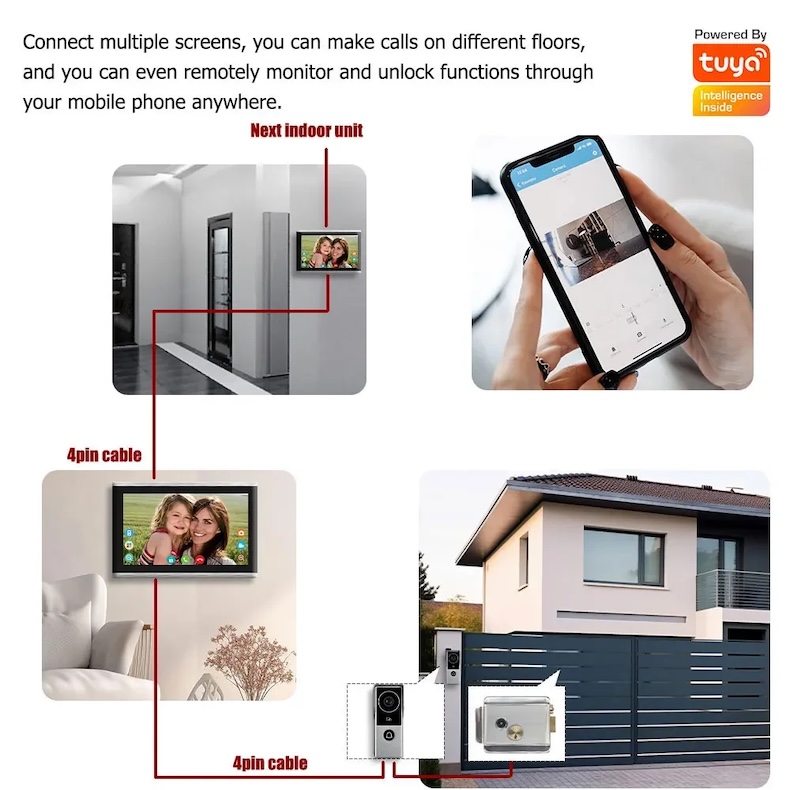

Connectivity	Indoor Monitor: 2.4GHz WiFi 802.11 b/g/n; Outdoor Unit: 4‑Wire Wired Connection to Monitor
Power Supply	Shared 12V/2A Adapter (for both doorbell and monitor)
Access Control	Inductive 13.56MHz IC Card (Supports Unlock/Lock Delay)
Smart Features	Motion Detection, Call Recording, Photo/Video Capture, Push Notifications, Cloud Storage via Tuya App
Intercom & Networking	Hands‑free Communication; Supports up to 2 Doorbells, 2 CCTV Cameras, and 6 Indoor Monitors
Storage	External TF Card for Photos, Videos, and Voice Messages
App & Users	Tuya Smart App (Up to 20 Concurrent Users, Remote Access)

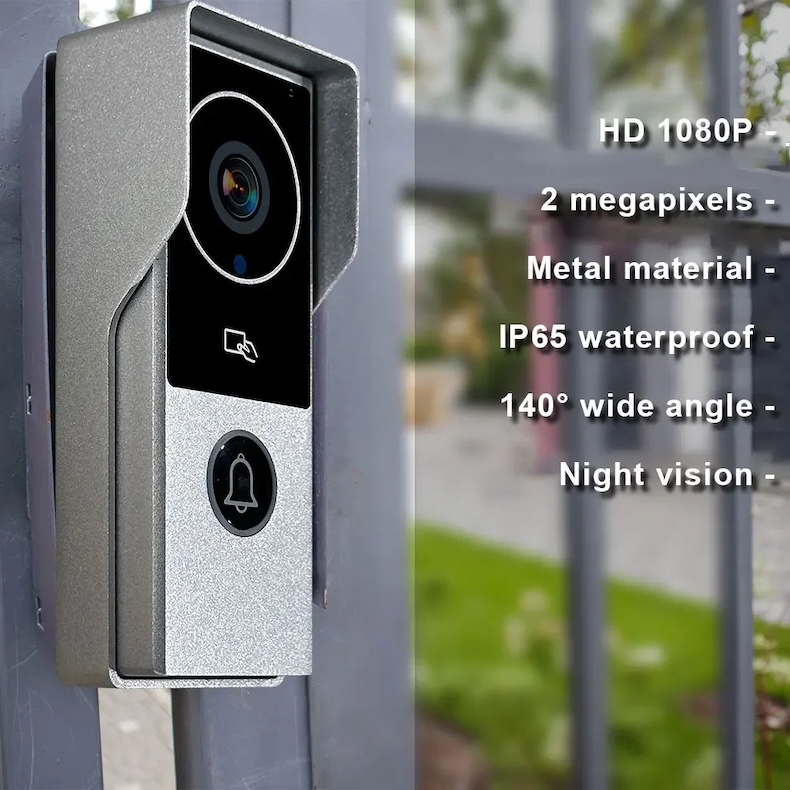

Doorbell Construction	Metal Faceplate, 33mm Camera, Rain Cover, Mic, IR LEDs, Speaker, Call Button
Weatherproof	Yes (Outdoor Unit)
Installation	Wall Mounting
Power Rating	220V (Mains Voltage for Power Adapter Input)
