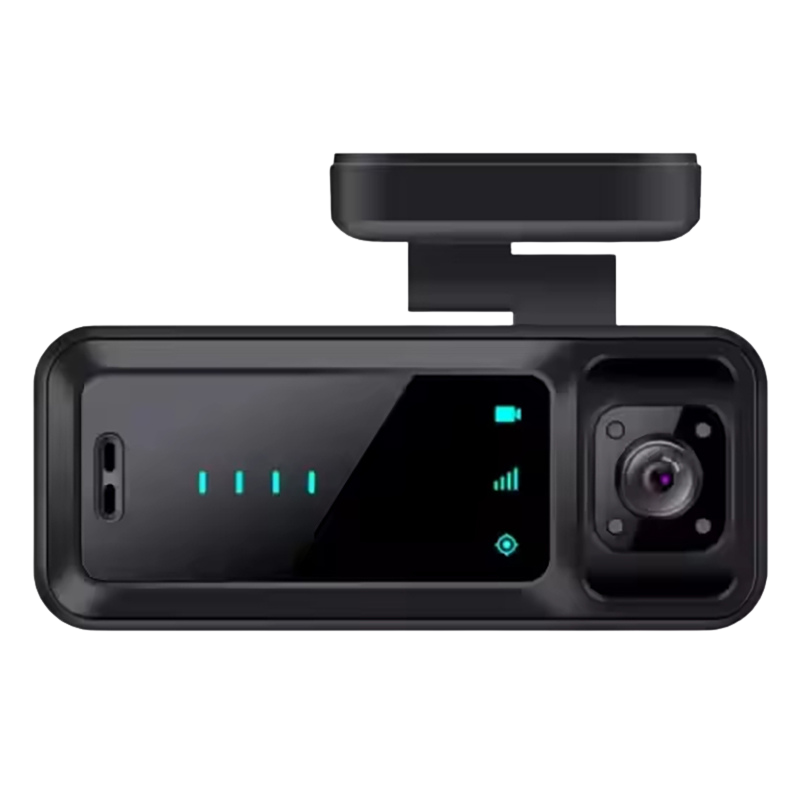

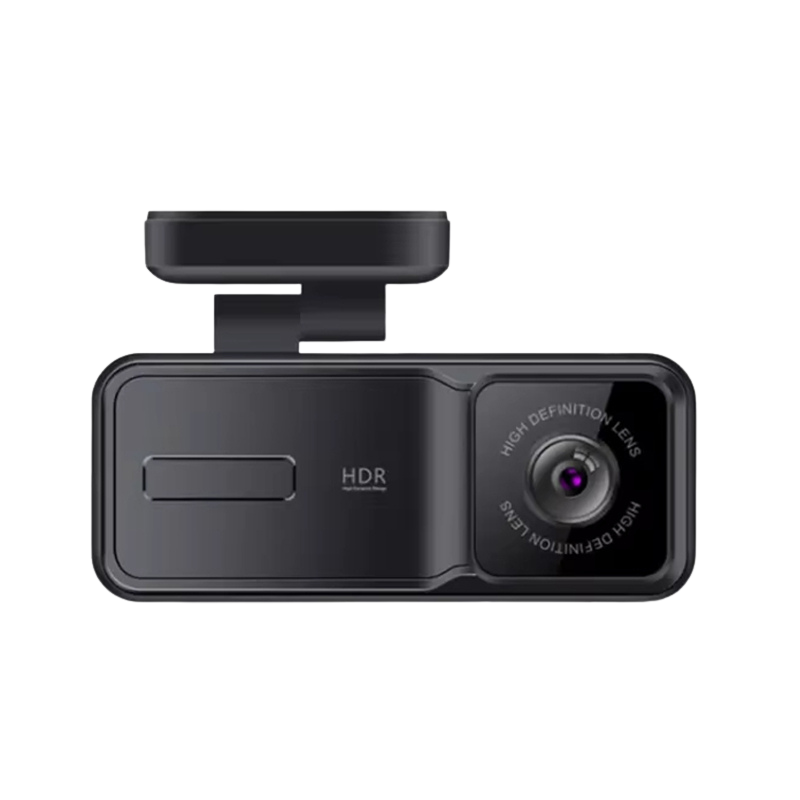

4G Dual-Channel Vehicle Dash Cam with GPS Tracking

This is a professional 4G LTE dual-camera car security system featuring a high-performance dual-core processor and dual 3MP sensors for simultaneous interior and exterior monitoring in HD.

Key Features:

  • 4G LTE with Built-in GPS
  • Dual 3MP HD Cameras (Inside/Outside)
  • Microwave Radar + G-Sensor Detection
  • H.265 Compression & 940nm IR Night Vision
  • OBD Power & IP66 Rating
Category:

Features:

  • Dual-Channel HD Monitoring: Simultaneously records 2304×1296 @30fps exterior video and 1080P interior video via dual 3MP CMOS sensors.

  • 4G LTE & GPS Connectivity: Built-in 4G module provides real-time remote viewing and alerts, with GPS for live location tracking.

  • Advanced Detection System: Features front & rear microwave radar sensors and a G-sensor for impact and motion detection.

  • Smart Power Management: Configurable wake-up/hibernation timers (5s-30s or continuous) powered via OBD port or 12V adapter.

  • Enhanced Night Vision: Uses 940nm IR for invisible interior night vision and full-color mode for exterior low-light recording.

  • Two-Way Audio & Privacy Mode: Built-in microphone and speaker for communication, with a physical privacy button to disable recording.

  • Flexible Storage & Connectivity: Supports up to 128GB TF card and cloud storage; features WiFi AP mode for local video download.

  • Robust Construction: IP66-rated housing protects against dust and water jets for reliable outdoor use.

Specification

Category Specification
Model CA10
Product Name 4G HD Car Camera
Processor (Main Control) Ingenic T40N Dual-Core Processor
Image Sensor Dual 3MP CMOS Sensors (1/2.9″)
Resolution 3MP + 2MP (Total 5MP system)
Video Stream Primary: 2304 x 1296 @ 30fps
Secondary: 1920 x 1080 (1080P) @ 15fps
Video Compression H.265

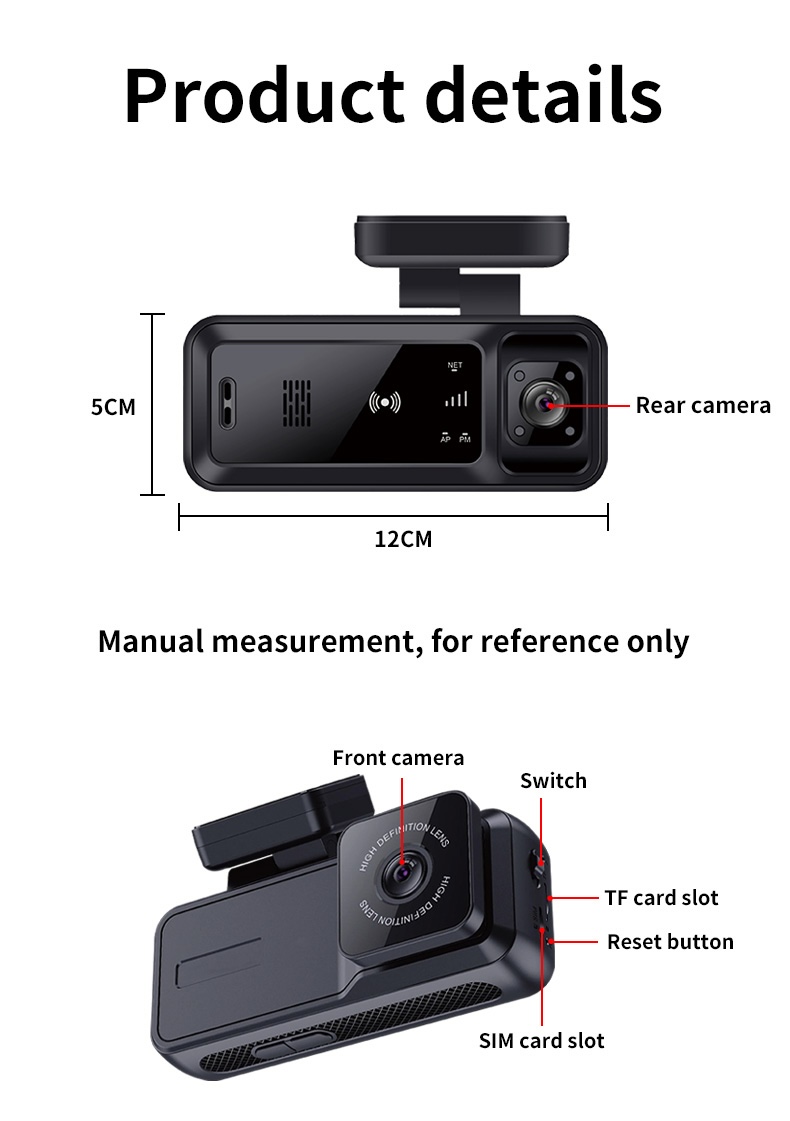

Lenses • Front (Exterior) Lens: 3.6mm fixed, 105° horizontal angle
• In-Cabin Lens: 2.28mm fixed, 140° horizontal angle
• Viewing Angle (System): 90° – 355° (Adjustable/Pan)

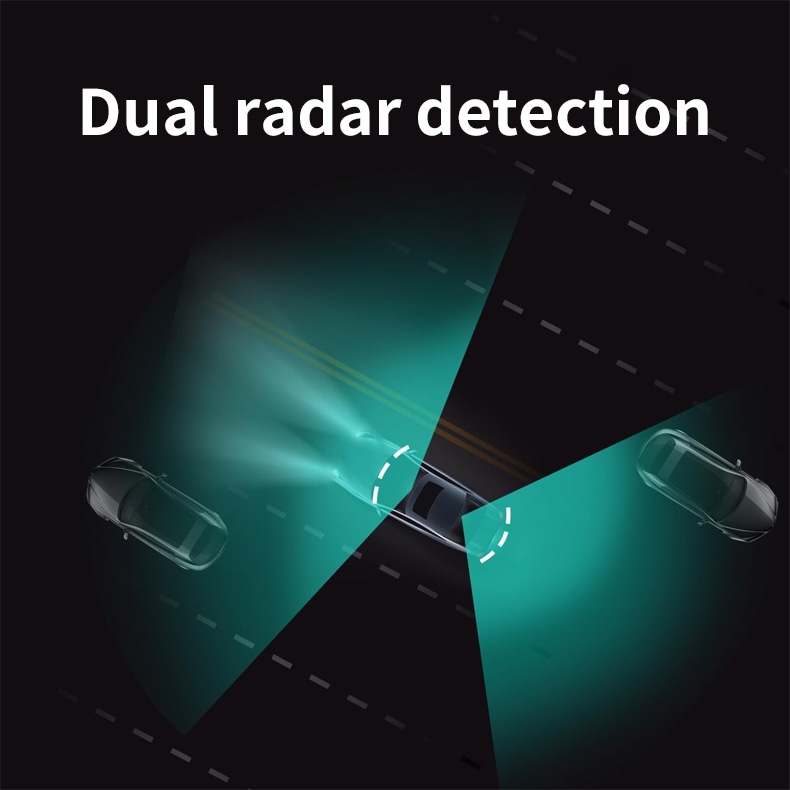

Detection & Sensors Method: Front & Rear Dual Microwave Radar + G-Sensor(Accelerometer)
Connectivity • 4G Module: UBIA Customized with GPS
• WiFi: 2.4GHz AP Mode Only (for local video download)
• Pairing: Bluetooth / QR Code / Audio
Audio Two-Way Audio Supported

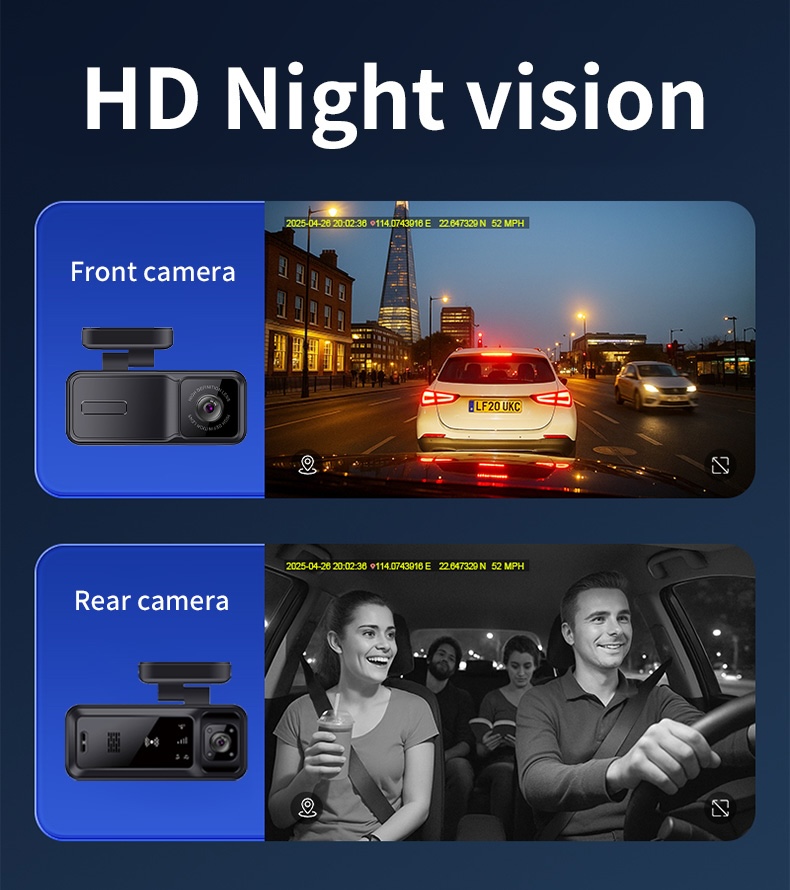

Night Vision • Exterior Lens: Full-Color Mode
• In-Cabin Lens: 940nm Infrared (IR) Night Vision
• Internal IR: 940nm IR Light
Storage • Local: TF Card, up to 128GB
• Cloud: Supported (Subscription may apply)
Power Supply 12V/2A (via OBD port or voltage-reduction cable)
Power Modes Wake-up/Hibernation: Configurable (5s, 10s, 20s, 30s, Full-time video)
Additional Features Human Motion Tracking, Motion Detection, GPS Location (OSD + App map), Privacy Mode (manual button)
Environmental Rating IP66 (Water & Dust Resistant)
